Дънна платка MSI A520M PRO - motherboard - micro ATX - Socket AM4 - AMD A520
Наличен
SKU
7D14-005R

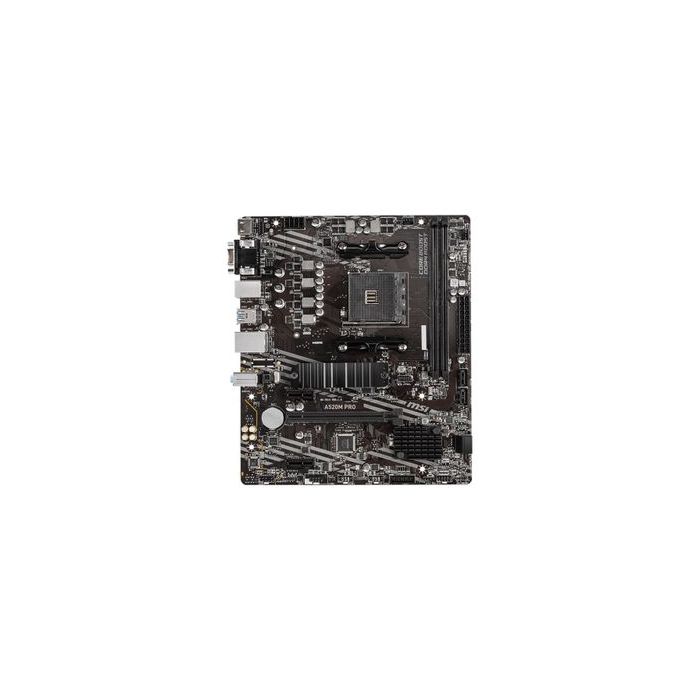

MSI A520M PRO - motherboard - micro ATX - Socket AM4 - AMD A520
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Micro ATX | |
| Compatible Processors | Ryzen | |
| Chipset Type | AMD A520 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) | |
| Supported RAM Speed | 3200 MHz, 3066 MHz, 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.) | |
| Processor Socket | Socket AM4 | |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 2 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Dual channel memory architecture, Supported ECC modules operate in non-ECC mode, A-XMP support | |
| Max Supported Size | 64 GB | |
| Видео изход | ||
| Type | Graphics adapter (CPU required) | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC892 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | Realtek RTL8111H | |
| Network | Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 1 x PCIe x16, 2 x DIMM 288-pin, 2 x PCIe 3.0 x1 | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| USB / FireWire | USB 3.2 Gen 1 | |
| Storage Ports | 4 x SATA-600 (RAID), 1 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | Drivers & utilities | |
| Размери и Тегло | ||
| Width | 24,4 cm | |
| Depth | 21 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | MSI |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | MSI |
