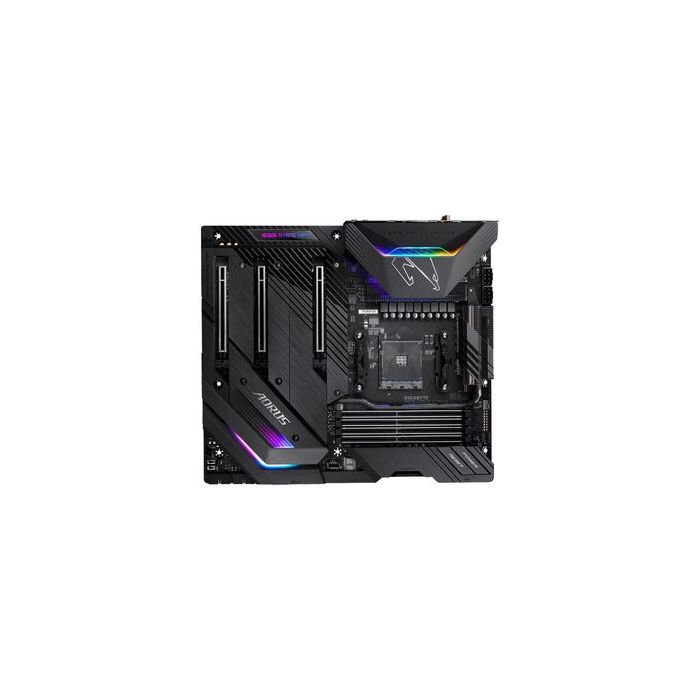

Дънна платка Gigabyte X570 AORUS XTREME - 2.0, extended ATX - Socket AM4 - AMD X570
Изчерпано количество
SKU
X570 AORUS XTREME 2.0
Gigabyte X570 AORUS XTREME - 2.0 - motherboard - extended ATX - Socket AM4 - AMD X570
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Extended ATX | |
| Compatible Processors | Ryzen | |
| Chipset Type | AMD X570 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC, ECC | |
| Supported RAM Speed | 4800 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5100 MHz (O.C.), 5300 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.) | |
| Processor Socket | Socket AM4 | |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x audio - header, 2 x USB 2.0 - header, 1 x Thunderbolt - header, 1 x USB-C Gen2 - header, 4 x USB 3.2 Gen 1 - header | |
| RAM | ||
| Features | Intel Extreme Memory Profiles (XMP), Dual channel memory architecture | |
| Max Supported Size | 128 GB | |
| Видео изход | ||
| Type | None | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | High Definition Audio | |
| Audio Codec | Realtek ALC1220-VB | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network | 802.11a/b/g/n/ac/ax, Bluetooth 5.2, 10 Gigabit Ethernet, Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x8 mode) | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 -connectors: 3 x M.2 | |
| Storage | Serial ATA-600 (RAID), M.2 socket | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2 | |
| Storage Ports | 6 x SATA-600 (RAID), 3 x M.2 | |
| USB / FireWire Ports Configuration (Active) | 1 x USB-C Gen 2 + 5 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 | |
| Софтуер | ||
| Software Included | EasyTune, Xpress Install, cFosSpeed, Norton Internet Security, GIGABYTE Fast Boot, @BIOS, GIGABYTE Smart Backup, XSplit Gamecaster (1 year license), XSplit Broadcaster (1 year license) | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 27 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | Gigabyte |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | Gigabyte |
