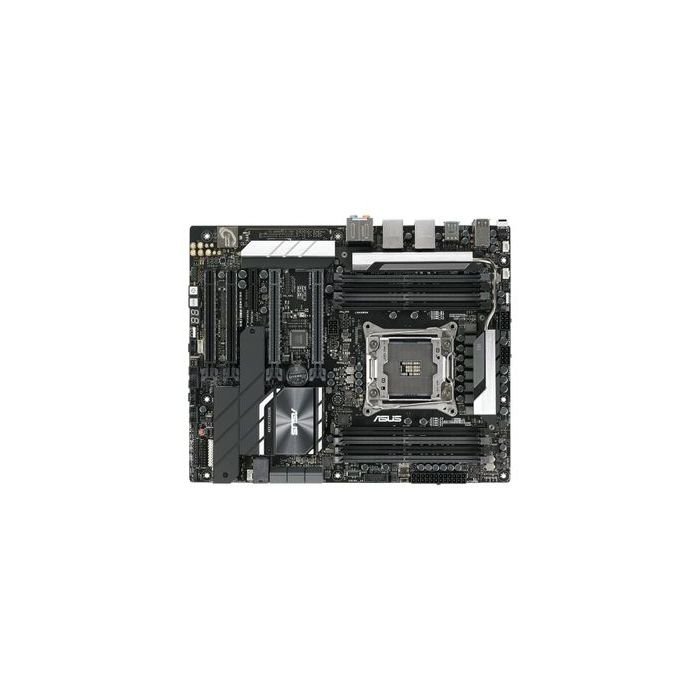

Дънна платка ASUS WS C422 Pro/SE, ATX - LGA2066 Socket - C422
Изчерпано количество
SKU
90SW0080-M0EAY0
ASUS WS C422 Pro/SE - motherboard - ATX - LGA2066 Socket - C422
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | ATX | |
| Compatible Processors | Xeon | |
| Chipset Type | Intel C422 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | ECC | |
| Supported RAM Speed | 2400 MHz, 2133 MHz, 2666 MHz | |
| Processor Socket | LGA2066 Socket | |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors | |
| Supported RAM (Registered or Buffered) | Registered, Load-Reduced | |
| RAM Slots | 8 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x serial - header, 2 x USB 2.0 - header, 1 x Thunderbolt - header, 2 x USB 3.1 Gen 1 - header, 1 x USB 3.1 Gen 2 - header | |
| RAM | ||
| Features | Quad channel memory architecture | |
| Max Supported Size | 512 GB | |
| Видео изход | ||
| Type | None | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | DTS Connect, High Definition Audio, DTS Headphone:X | |
| Audio Codec | Realtek ALCS1220A | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | Intel I210-AT | |
| Network | 2 x Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 8 x DIMM 288-pin, 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, PCIe 3.0 -connectors: 1 x U.2, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, PCIe 3.0 -connectors: 1 x M.2 | |
| Storage | Serial ATA-600 (RAID), M.2 socket, U.2 port | |
| USB / FireWire | USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 | |
| Storage Ports | 6 x SATA-600 (RAID), 2 x M.2, 1 x U.2 | |
| USB / FireWire Ports Configuration (Active) | 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 + 4 x USB 2.0 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 | |
| Софтуер | ||
| Software Included | ASUS AI Charger+, ASUS Control Center | |
| Размери и Тегло | ||
| Width | 30,5 cm | |
| Depth | 24,4 cm | |
| Обслужване и поддръжка | ||
| Type | 3-year warranty | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
