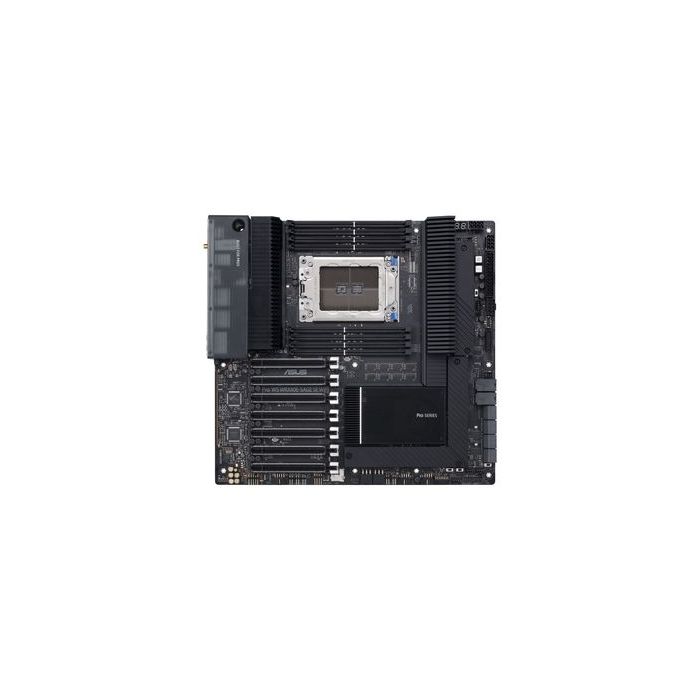

Дънна платка ASUS Pro WS WRX80E-SAGE SE WIFI, extended ATX - Socket sWRX8 - AMD WRX80
Наличен
SKU
90MB1590-M0EAY0
ASUS Pro WS WRX80E-SAGE SE WIFI - motherboard - extended ATX - Socket sWRX8 - AMD WRX80
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Extended ATX | |
| Compatible Processors | Ryzen ThreadRipper PRO | |
| Chipset Type | AMD WRX80 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC, ECC | |
| Supported RAM Speed | 3200 MHz, 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz | |
| Processor Socket | Socket sWRX8 | |
| Power Connectors | 2 x 6-pin PCI Express power connectors, 8-pin PCI Express power connector, 24-pin main power connector, 2 x 8-pin ATX12V connectors | |
| Supported RAM (Registered or Buffered) | Registered, Unbuffered, 3DS registered | |
| RAM Slots | 8 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 1 x serial - header, 4 x USB 2.0 - header, 1 x VGA - header, 1 x USB-C Gen2 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header | |
| RAM | ||
| Features | 8-channel memory architecture | |
| Max Supported Size | 2 TB | |
| Видео изход | ||
| Type | None | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | DTS:X Ultra, High Definition Audio | |
| Audio Codec | Realtek ALC4080 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | Intel X550-AT2 / Intel AX 200 | |
| Network | 802.11a/b/g/n/ac/ax, Bluetooth 5.1, 2 x 10 Gigabit Ethernet | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 7 x PCIe 4.0 x16, 8 x DIMM 288-pin | |
| Интерфейси | ||
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID, ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID, SATA-600 / PCIe 4.0 -connectors: 3 x M.2 - RAID, SATA-600 / PCIe -connectors: 2 x U.2 | |
| Storage | Serial ATA-600 (RAID), M.2 socket, U.2 port | |
| USB / FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C Gen2 | |
| Storage Ports | 8 x SATA-600 (RAID), 3 x M.2, 2 x U.2 | |
| USB / FireWire Ports Configuration (Active) | 1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 8 x USB 3.2 Gen 2 | |
| USB / FireWire Ports Configuration (Headers) | 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | Norton AntiVirus (Trial), ASUS AI Charger, ASUS CPU-Z, Drivers & utilities, ASUS EZ Flash 3, DAEMON Tools, WinRAR | |
| Размери и Тегло | ||
| Width | 30,98 cm | |
| Depth | 332 cm | |
| Обслужване и поддръжка | ||
| Type | 3-year warranty | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | Asus |
