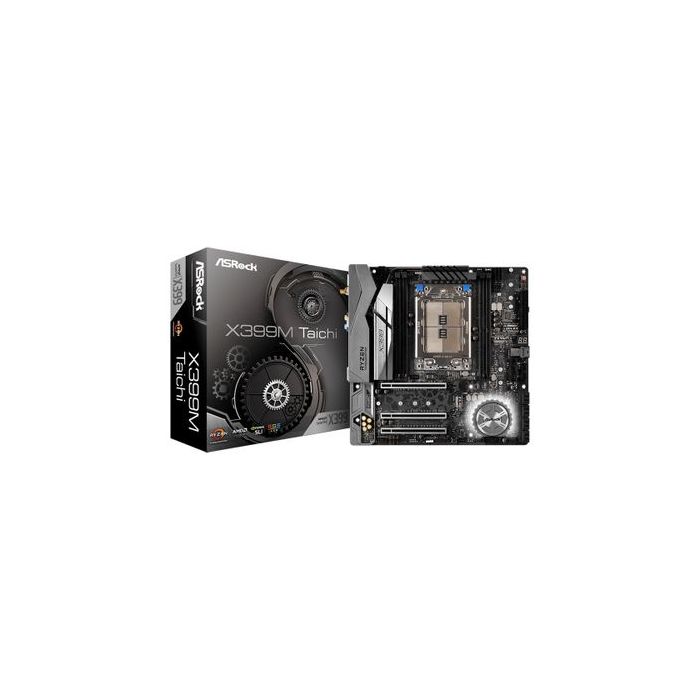

Дънна платка ASRock X399M Taichi, micro ATX - Socket TR4 - AMD X399
Изчерпано количество
SKU
90-MXB7B0-A0UAYZ
ASRock X399M Taichi - motherboard - micro ATX - Socket TR4 - AMD X399
| Общи Характеристики | ||
|---|---|---|
| Packaged Quantity | 1 | |
| Процесор | ||
| Installed Qty | 0 | |
| Max Supported Qty | 1 | |
| Дънна платка | ||
| Form Factor | Micro ATX | |
| Compatible Processors | Ryzen ThreadRipper | |
| Chipset Type | AMD X399 | |
| Supported RAM Technology | DDR4 SDRAM | |
| Supported RAM Integrity Check | Non-ECC, ECC | |
| Supported RAM Speed | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.) | |
| Processor Socket | Socket TR4 | |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector | |
| Supported RAM (Registered or Buffered) | Unbuffered | |
| RAM Slots | 4 DIMM slots | |
| Интерфейси | ||
| Internal Interfaces | 4 x USB 2.0 - header, 2 x audio - header, 4 x USB 3.1 Gen 1 - header | |
| RAM | ||
| Features | Quad channel memory architecture | |
| Max Supported Size | 64 GB | |
| Аудио изход | ||
| Type | Sound card | |
| Compliant Standards | DTS Connect, High Definition Audio, Premium Blu-ray audio support, Purity Sound 4 | |
| Audio Codec | Realtek ALC1220 | |
| Audio | High Definition Audio (8-channel) | |
| Работа в мрежа | ||
| Network Controller | 2 x Intel I211AT | |
| Network | Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac | |
| Слотове за разширение | ||
| Expansion Slots | 1 x CPU, 4 x DIMM 288-pin, 1 x M.2 socket (Key E), 3 x PCIe 3.0 x16 (dual x16 mode; triple: x16, x16, x16 mode) | |
| Интерфейси | ||
| Storage Interfaces | PCIe 3.0 -connectors: 1 x U.2, SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2, SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, PCIe 3.0 -connectors: 2 x Ultra M.2 | |
| Storage | Serial ATA-600 (RAID), Ultra M.2 socket, U.2 port | |
| USB / FireWire | USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 | |
| Storage Ports | 8 x SATA-600 (RAID), 3 x Ultra M.2, 1 x U.2 port | |
| USB / FireWire Ports Configuration (Active) | 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 8 x USB 3.1 Gen 1 | |
| USB / FireWire Ports Configuration (Headers) | 4 x USB 3.1 Gen 1 + 4 x USB 2.0 | |
| Софтуер | ||
| Software Included | Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar | |
| Размери и Тегло | ||
| Width | 24,4 cm | |
| Depth | 24,4 cm | |
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
Повече информация
| Тип продукт | Дънна платка |
|---|---|
| Производител | AsRock |
