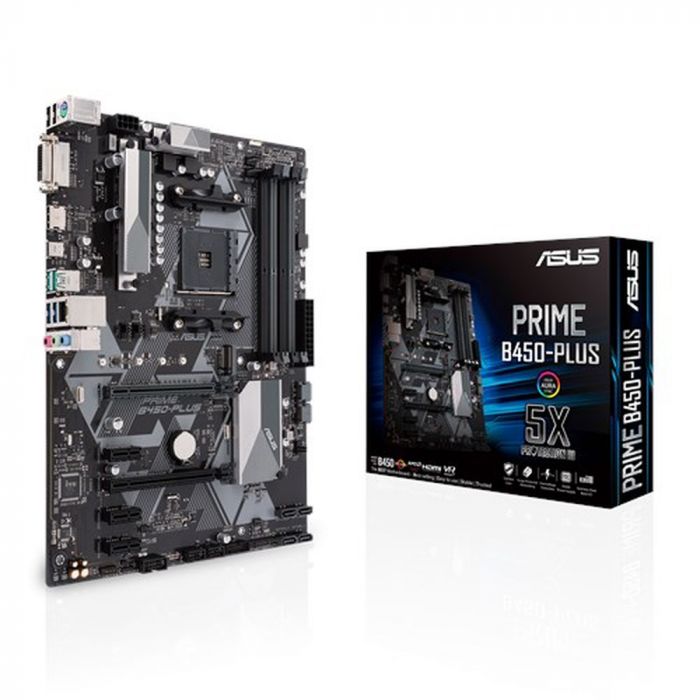

Дънна платка ASUS Prime B450-PLUS, AMD B450, DDR4, AM4

Socket: AM4

• Graphics: Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors; Multi-VGA output support : HDMI/DVI-D ports; - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz; - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

• CPU`s supported: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors; Supports CPU up to 8 cores

• Chipset: AMD B450

• Expansion Slots: AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors; 1 x PCIe 3.0/2.0 x16 (x16 mode); AMD Ryzen™ with Radeon™ Vega Graphics Processor; 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD B450 chipset; 1 x PCIe 2.0 x16 (max at x4 mode); 3 x PCIe 2.0 x1

• Storage: AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 2 x SATA 6Gb/s port(s); AMD B450 chipset : 4 x SATA 6Gb/s port(s); Support Raid 0, 1, 10

• Memory type: AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors; 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.

• I/O: 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI-D; 1 x HDMI; 1 x LAN (RJ45) port(s); 1 x 5Gb/s port(s) USB Type-CTM; 2 x USB 3.1 Gen 2 (teal blue)Type-A,; 2 x USB 3.1 Gen 1 (blue) Type-A,; 2 x USB 2.0; 3 x Audio jack(s)

• Connectors: 1 x Aura RGB Strip Header; 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 6 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (1 x 4 -pin); 3 x Chassis Fan connector(s) (3 x 4 -pin); 1 x AIO_PUMP connector (1 x 4 -pin); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s); 1 x Clear CMOS jumper(s); 1 x COM port header

• Audio: Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *; Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

• LAN: Realtek® RTL8111H; ASUS LAN Guard

• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

• Form Factor: ATX Form Factor; 12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

• OS: Windows® 10 64-bit

• Warranty: 36 Months
